Входове:

* 6 балансирани моно Mic/Line

* 2 балансирани Mic/Stereo Line

* 2 балансирани Stereo Line

* AUX return - 2 Stereo

* 2T input – stereo RCA

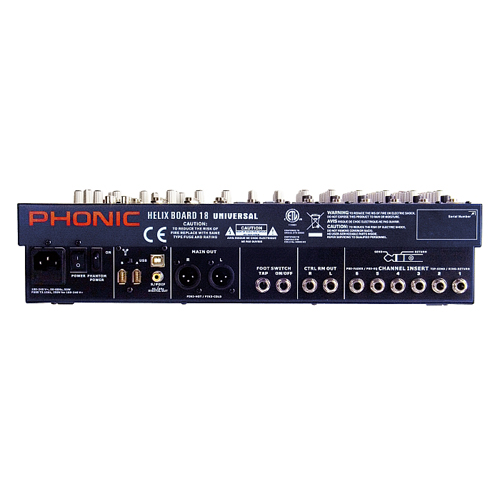

Изходи:

* Main L/R stereo - 2 х 1/4"TRS, Bal.& 2 x XLR

FireWire и USB Intarface:

16 out & 2 in, 24 bit/ 96 Hz, 2 FireWire ports и 1 USB port

2- Subgroup

DFX процесор

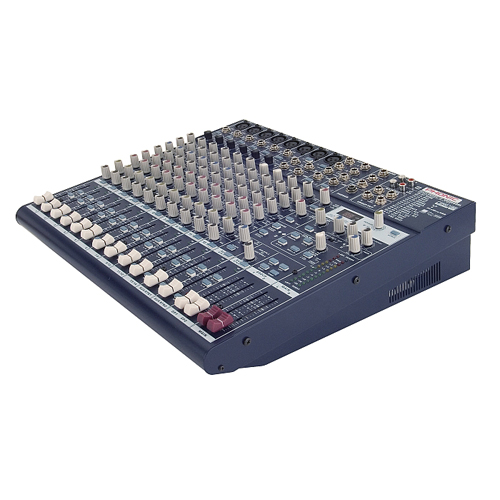

The Helix Board 18 Universal is part of the new generation of USB / FireWire mixers from Phonic. The Universal mixer features a FireWire and USB interface that can individually stream up to 16 independent channels of audio to the computer and return two tracks for monitoring, all at screaming fast transfer rates of up to 24-bit/96 kHz with a zero latency. Pre/post switches on each input channel ensure users can adjust the outgoing USB/FireWire signal between a pre fader and post fader signal with the utmost of ease. An onboard 32/40-bit digital multi-effect processor provides 100 popular programs, tap-delay, test tones (pink noise, 1 kHz, etc) and foot switch jacks. There are 8 extremely low noise Mic preamps, each with phantom power, spread across six mono Mic/Line channels with 75 Hz low cut filters, and four stereo Line channels. Each Mic channel has a 3-band EQ (six with swept mid), and two stereo channels have a 4-band EQ. A 10-band system graphic equalizer can be assigned to Main Outs or AUX 1. Stereo RCA inputs and outputs make the addition of digital and analog playback and recording devices effortless. Additional features include three AUX sends, two stereo Aux returns, input and output solo, two true subgroups and a rack mounting kit. Steinberg Cubase LE 4 digital audio workstation software included.
